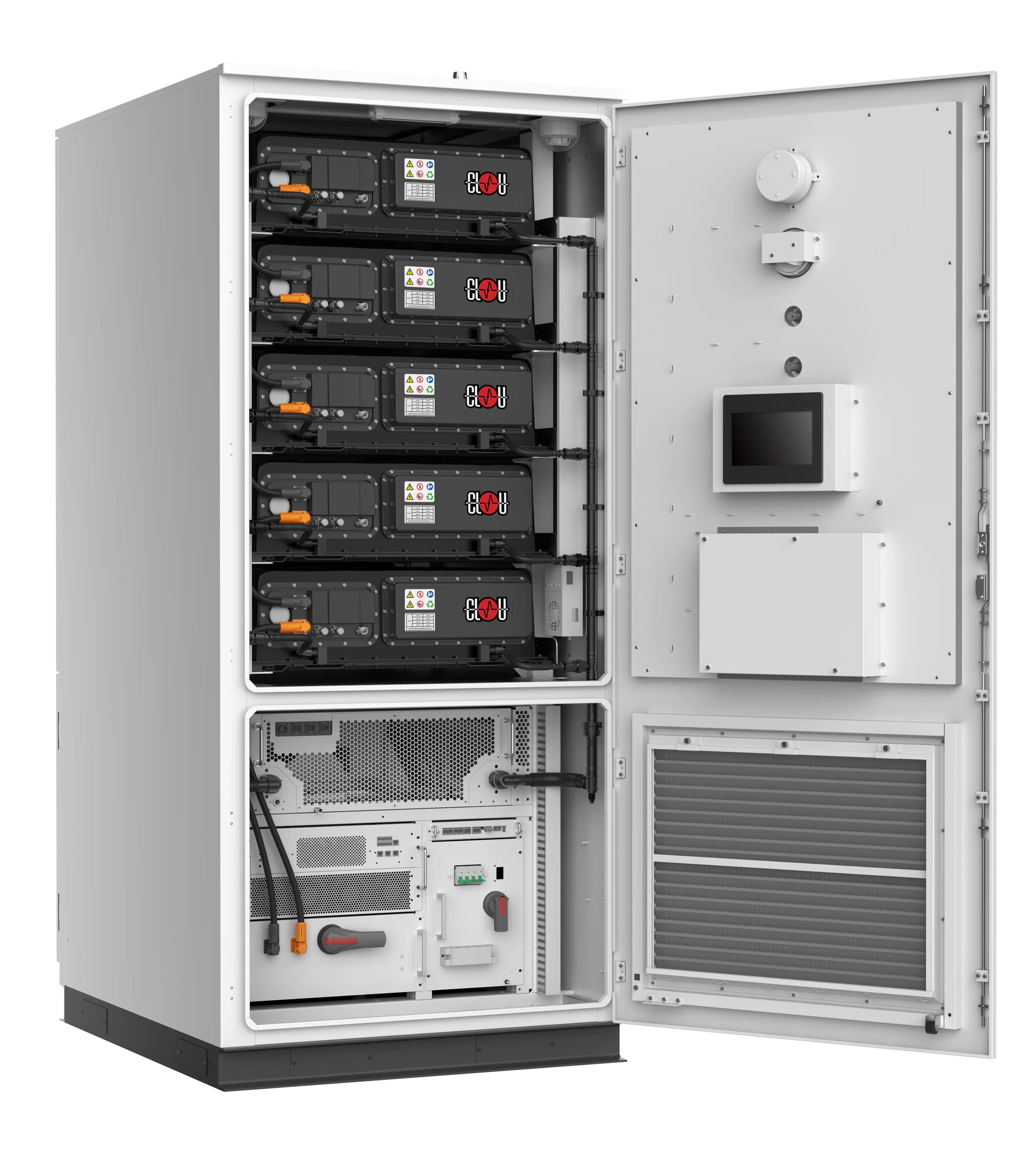

Clou Aqua-E-233 Liquid-Cooled Commercial Energy Storage System
The Clou Aqua-E-233 is an advanced Battery Energy Storage System (BESS) designed for commercial and industrial applications. This all-in-one liquid-cooled cabinet provides a nominal capacity of 233kWh and 110kW power output, optimized for energy management tasks such as peak shaving, renewable energy integration, and grid support. It features an IP55-rated enclosure for durability in various environments, along with smart technologies for efficient operation and maintenance.
Key Features:
- **All-in-One Integrated Design**: Highly compact structure that reduces footprint by 10% compared to traditional systems.
- **Liquid Cooling System**: Ensures optimal thermal management for enhanced performance and battery longevity.
- **Smart Scales Technology**: Enables intelligent scaling and optimization.
- **High System Efficiency**: Over 92% overall efficiency, with ≥87% at 0.5P.
- **Intelligent Operation and Maintenance**: AI-driven tools and cloud-based real-time monitoring via web interface.
- **Self-Powered Auxiliary Power**: For reliable operation.
- **Robust Safety Features**: Includes fire suppression with aerosol, smoke detectors, and audible/visual alarms.
- **Communication Interfaces**: Ethernet, CAN, RS485, with optional 4G connectivity.
Technical Specifications:
- **DC-Side**:
- Nominal Capacity: 233kWh
- Nominal Power: 110kW
- Battery Voltage Range: 676–949Vdc
- Cell Type: LFP (Lithium Iron Phosphate) 3.2V/280Ah
- Configuration: 1P260S
- **AC-Side**:
- Nominal Power: 110kW
- Max THD of Current: <3%
- AC Voltage Harmonics: <3%
- DC Component: <0.5%
- Nominal Voltage: 400Vac
- Voltage Range: 340–460Vac
- Frequency Range: 50±5Hz
- **System Parameters**:
- Operating Temperature: -30°C to 55°C (derating above 45°C)
- Storage Temperature: -30°C to 55°C
- Relative Humidity: 5–95% (non-condensing)
- Max Altitude: 2000m
- Protection Grade: IP55
- Cycle Life: ≥7000 cycles
- Dimensions (W × D × H): 1050 × 1350 × 2400 mm
- Weight: 2450 ± 50 kg
- Corrosion-Proof Grade: C4 (C5 optional)
Benefits and Applications:
This BESS optimizes energy returns through high efficiency, scalable design, and AI-enhanced maintenance, leading to lower levelized cost of energy (LCOE) and higher revenue. It's ideal for commercial energy storage, including microgrids, solar/wind integration, backup power, and demand management. The system offers excellent service with customized solutions and complies with international standards for safety and reliability.
Certifications and Compliance:
- IEC62619, IEC63056, IEC62040, IEC62477, UN38.3
- Suitable for full populated transportation with battery packs.
