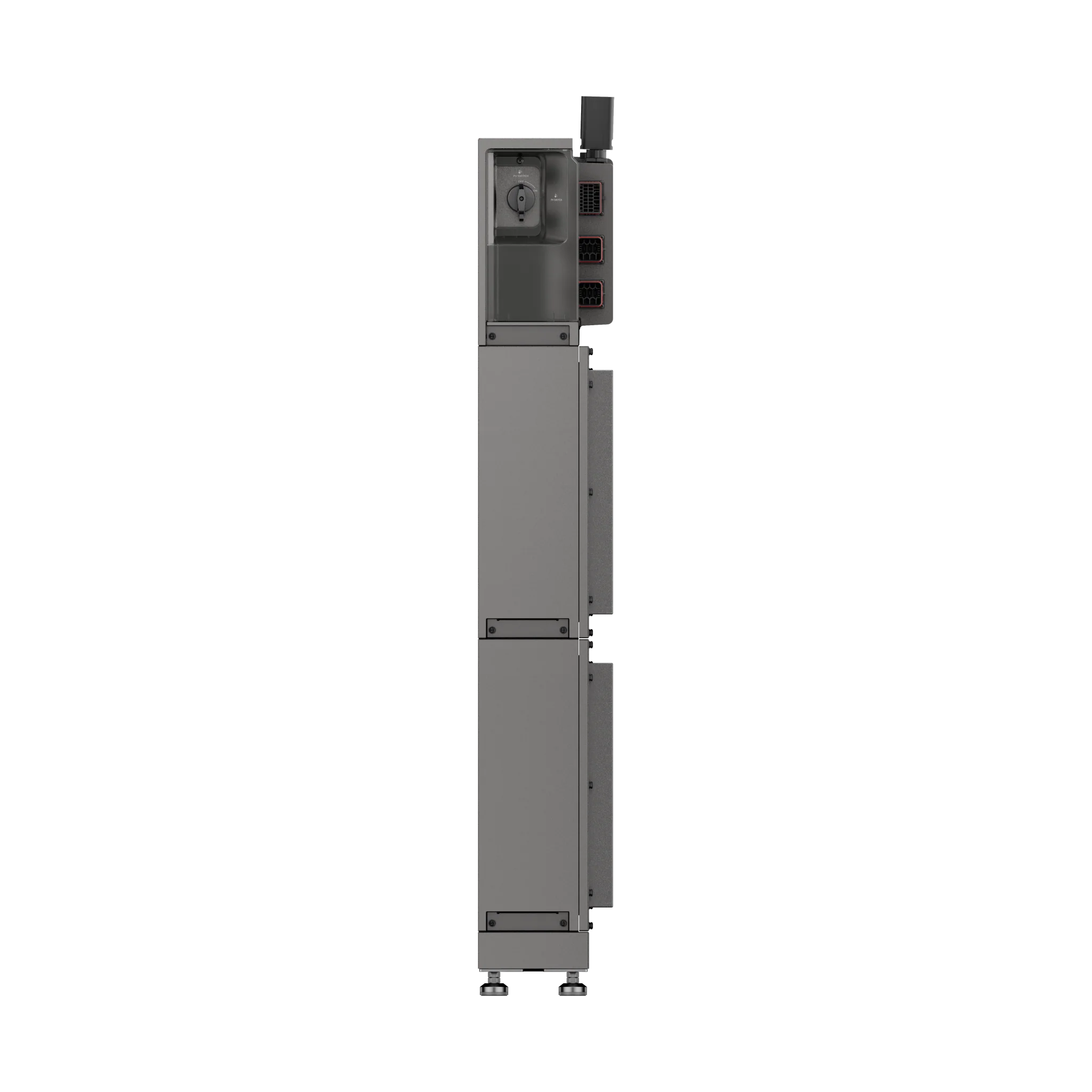

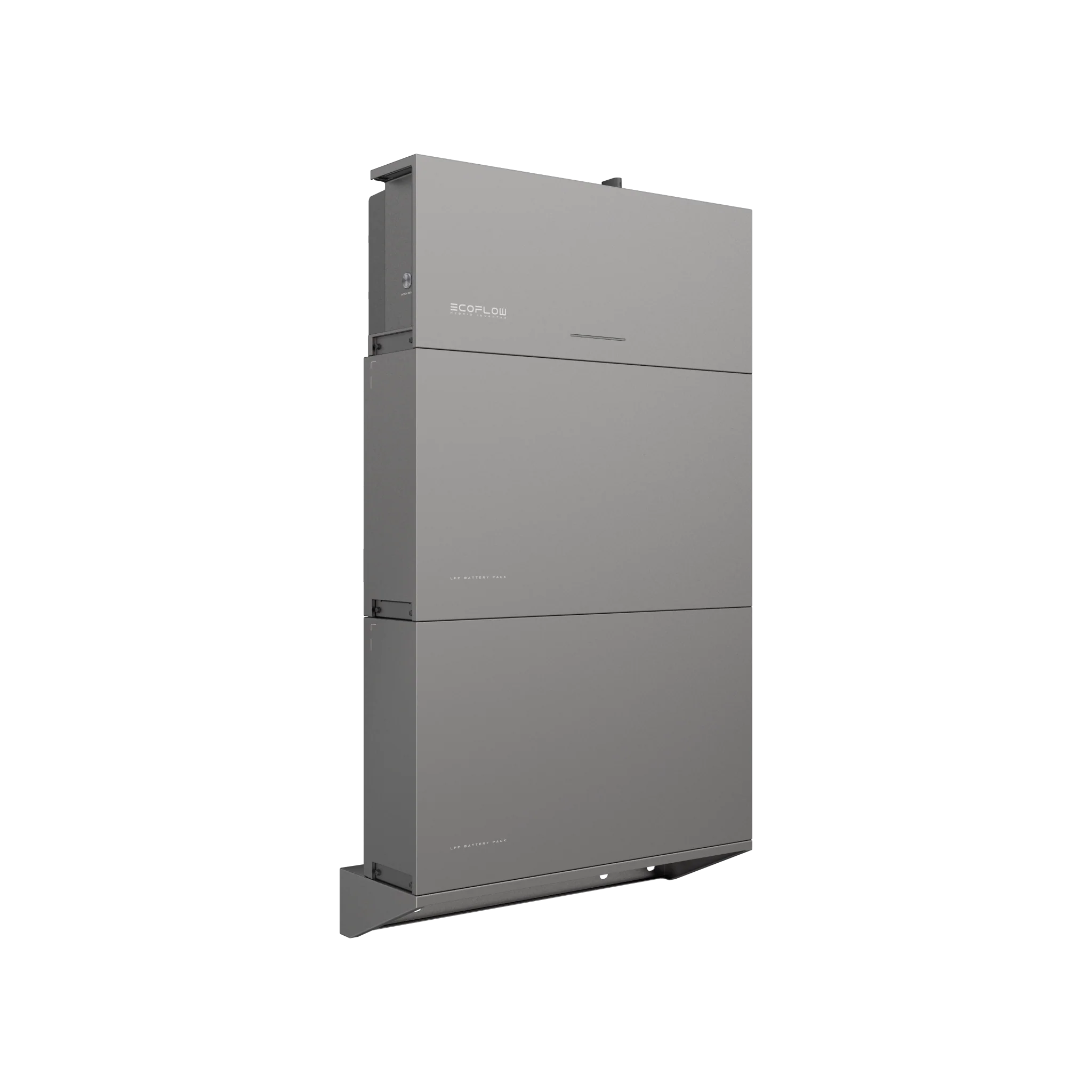

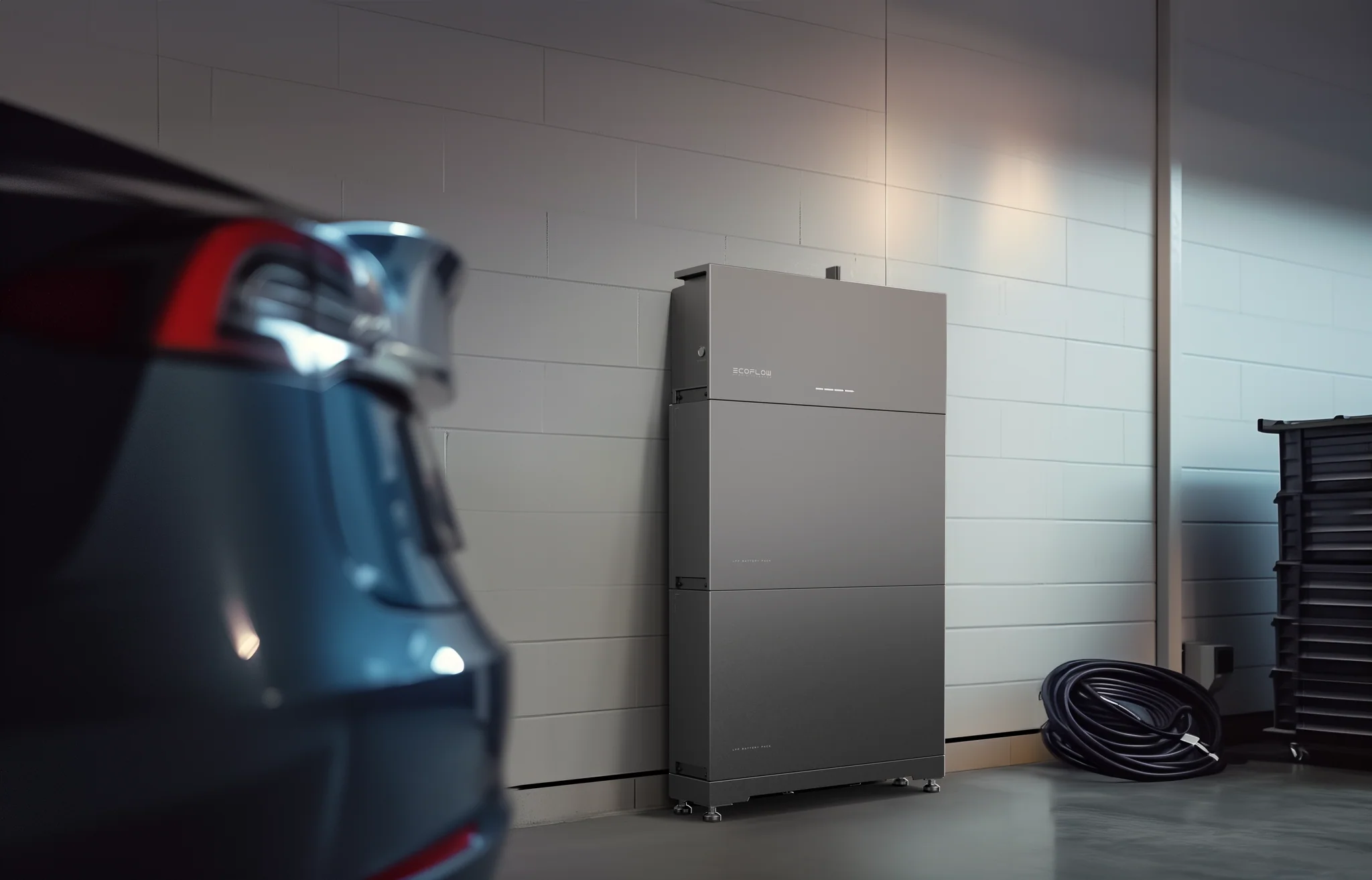

EcoFlow PowerOcean (Single-Phase) Hybrid Inverter 3.6kW Bundle With 10kWh EcoFlow PowerOcean LFP Battery

• Nominal capacity: 10.2 kWh
• Usable capacity: 9.7 kWh
• Depth of discharge (DoD): 95%
• Max Output power: Two x  Batteries 6.6kw
• Round trip efficiency: 94%
• Nominal voltage: 800V
• Charging Range: 720 - 960V
• Max Charge/discharge current: up to 100A depending on inverter [see datasheet]
• Cycle Life: 6000 cycles
• Dimensions: (W x D x H)mm 680 x 183 x 849
• Weight: 170.2 kg
• Floor Standing or Wall Mounted
• IP65: protection grade
• Warranty: 15 years

Inverter

• Maximum PV Power: 9680w (3.6Kw Inverter)
• Maximum Input Voltage: 600V
• Mppt Voltage Range: 90V-520
• Max input Current per MPPT (A): 18 (single PV input), 16 (dual PV input)
• Dimensions: (W x D x H)mm 679.6×182.7×280
• Weight: 21.5kg
• Noise Emission (dB)
• Floor Standing or Wall Mounted
• IP65 protection grade
• Warranty: 15 year



Included in package:

1 x EcoFlow PowerOcean (Single-Phase) Hybrid Inverter 3.68kW with External CT smart meter

2 x EcoFlow PowerOcean LFP Battery 5kwh Battery

1 x EcoFlow PowerOcean Battery Base
