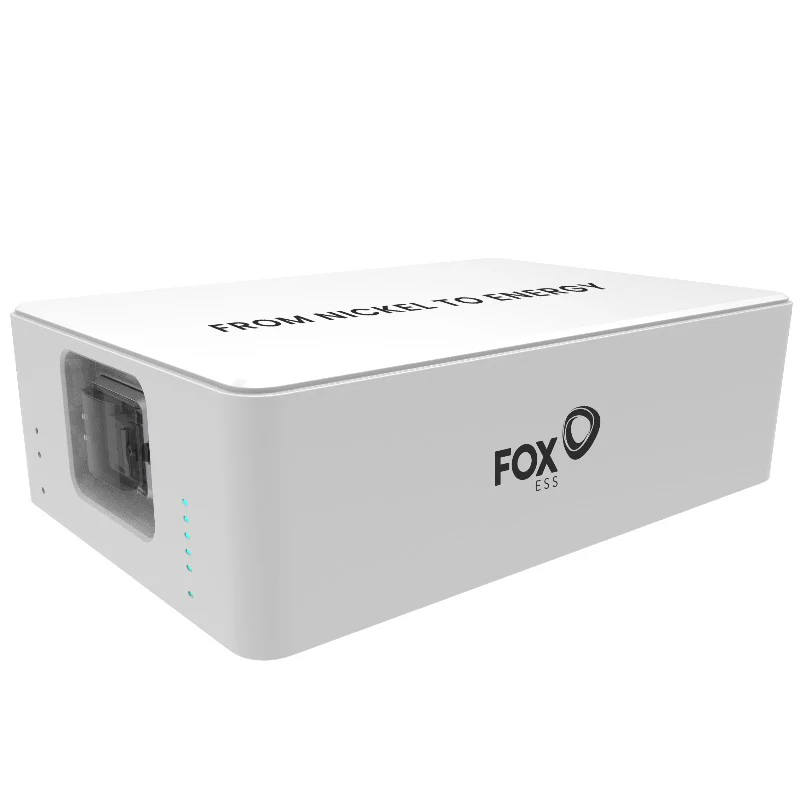

Fox ECS 2.88kWh HV Battery (Master)-V2.0 Connector A
HomeStore

Fox ECS 2.88kWh HV Battery (Master)-V2.0 Connector A

Fox ECS 2.88kWh HV Battery (Master)-V2.0 Connector A

$450.30

Original: $1,286.58

-65%
Fox ECS 2.88kWh HV Battery (Master)-V2.0 Connector A—

$1,286.58

$450.30

The Story

Part No: FE-HV-ECM-2900-4A2C Storage Systems - Li-ion Battery Pack

    Fox ECS - High Voltage Battery (Slave)

    ECS2900-V2 Connector A


    • 2.88kWh Capacity
    • Scalable to 20.16kWh
    • 90% Depth of Discharge
    • Wide Temperature Tolerence
    • Easy Installation
    • CAN/RS485 Communication
    • High Voltage

    Don't forget: You must register your install with Fox online to activate the 12 year product warranty, otherwise it's 5 years as standard. Please click here for registration page. Please check the warranty document for more information.

    This battery requires a MINIMUM of 2 modules to work (Master + Slave), This battery can have a MAXIMUM of 7 modules in a stack (1x Master + 6x Slaves)


    If you are adding battery modules to a pre-existing Energy Cube stack, it’s important that the new batteries are compatible with your original battery modules.  Please contact your Technical person via the portal and provide a photograph of the original battery stack to help us determine correct compatibility.

    IMPORTANT REMINDER: When increasing the capacity of this battery stack, make sure the battery is the same connector type. We only stock the VERSION 2's of the ECS batteries. We stock both the Connector Type A  and Connector Type  B variations. This is the Connector Type A variation.

    This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Powerland will not be held liable for any product malfunctions as a result of incorrectly installed systems.
      Supplier Part No:
      FE-HV-ECM-2900-4A2C
      Weight:
      37.95 kg
      Rated Power:
      2,880 W
      Battery Type:
      Lithium Ion
      Nominal Energy:
      2880 Wh
      Depth of discharge:
      90.00 %
      Voltage:
      52 V
      Continuous Discharge Rate (Normal Use):
      1440 W
      Maximum Discharge Rate (5 Minutes):
      2880 W
      Surge Discharge Rate (15 Seconds):
      3000 W
      Maximum Charge Rate (5 Minutes):
      2880 W
      Fox ESS

      Description

      Part No: FE-HV-ECM-2900-4A2C Storage Systems - Li-ion Battery Pack

        Fox ECS - High Voltage Battery (Slave)

        ECS2900-V2 Connector A


        • 2.88kWh Capacity
        • Scalable to 20.16kWh
        • 90% Depth of Discharge
        • Wide Temperature Tolerence
        • Easy Installation
        • CAN/RS485 Communication
        • High Voltage

        Don't forget: You must register your install with Fox online to activate the 12 year product warranty, otherwise it's 5 years as standard. Please click here for registration page. Please check the warranty document for more information.

        This battery requires a MINIMUM of 2 modules to work (Master + Slave), This battery can have a MAXIMUM of 7 modules in a stack (1x Master + 6x Slaves)


        If you are adding battery modules to a pre-existing Energy Cube stack, it’s important that the new batteries are compatible with your original battery modules.  Please contact your Technical person via the portal and provide a photograph of the original battery stack to help us determine correct compatibility.

        IMPORTANT REMINDER: When increasing the capacity of this battery stack, make sure the battery is the same connector type. We only stock the VERSION 2's of the ECS batteries. We stock both the Connector Type A  and Connector Type  B variations. This is the Connector Type A variation.

        This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Powerland will not be held liable for any product malfunctions as a result of incorrectly installed systems.
