Hanchu ESS Gateway - Single Phase Gen 2
HomeStore

Hanchu ESS Gateway - Single Phase Gen 2

Hanchu ESS Gateway - Single Phase Gen 2

$544.01

Original: $1,554.32

-65%
Hanchu ESS Gateway - Single Phase Gen 2—

$1,554.32

$544.01

The Story

Manufacturer Code: HESS-Gateway-M1

Order Code: HC-SP-Gateway

Introduction

HANCHU ESS has developed a gateway for home energy storage systems that supports partial home backup and is capable of connecting EV charger. It facilitates data collection and monitoring, off-grid backup switching, and provides more centralised management of household electricity consumption.

Key Features

  • Supports PV inverters – Can be combined with a hybrid inverter to supply power to the load.
  • Reliable Energy – Switch to bypass mode in case of system abnormality to supply power from the grid to the loads.
  • Ultimate Safety – IP65 protection level and Protection Class: I
  • Easy Installation – Pre-installed meters make installation easier.
  • All RCBOs comply fully with BS7671 wiring regulations – the gold standard for electrical installations.
  • Type A RCBOs detect both AC and pulsing DC residual currents in both directions.
  • Ensures safety against short circuits, overloads and DC back-feed.

Input Data

  • Nominal AC Input Voltage Range: 220/230/240V
  • Max. AC Current (Grid): 100A
  • Max. AC Current (PV INV): 32A
  • Max. AC Current (Inverter): 32A
  • Rated AC Frequency: 50/60Hz

Output Data

  • Nominal AC Output Voltage Range: 220/230/240V
  • Max. AC Current (Load): 100A
  • Max. AC Current (Backup): 32A
  • Max. AC Current (EV Charger): 32A
  • Rated Output Frequency: 50/60Hz
  • Switching Time: House Load Consumer Unit≤300ms, Additional Critical Load≤10ms

Supported Devices

  • Inverter: Yes
  • Battery: Yes
  • EV Charger: Yes
  • Load: Yes

General Data

  • Activation Methods: Grid Startup + Inverter Startup
  • Operating Modes: On Grid + Off Grid
  • Bypass Mode: Manual
  • Protection Class: I
  • AC Surge Protection Type II: Yes
  • Ingress Protection Degree: IP65
  • Operating Temperature Range: -20~50°C
  • Relative Humidity Range: 5%~95%
  • Operating Altitude: <4000m (>2000m derating)
  • Cooling Concept: Natural convection
  • Dimensions (W x H x D): 360*450.5*169.5 mm
  • Weight: 13.9kg
  • Warranty: 2 years



Hanchu ESS Gateway - Single Phase Gen 2 - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

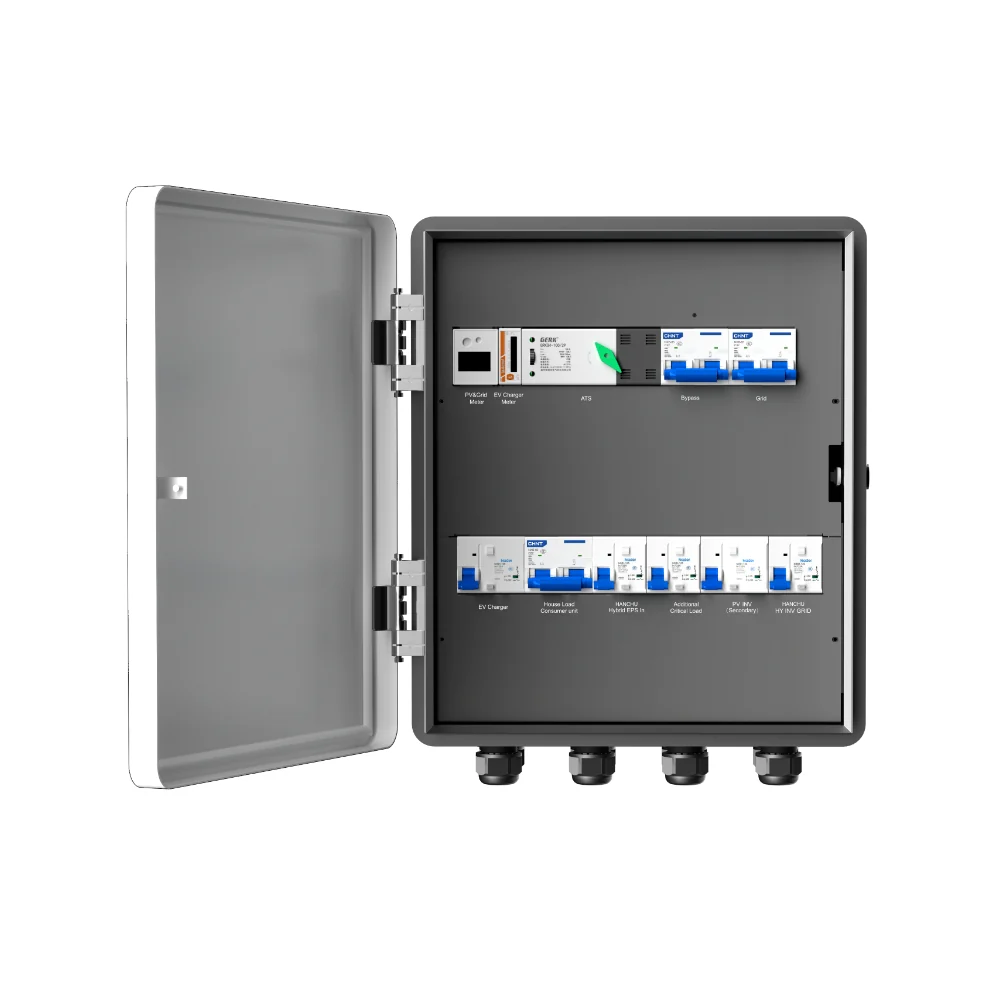

Hanchu ESS Gateway - Single Phase Gen 2 - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Hanchu ESS Gateway - Single Phase Gen 2 - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

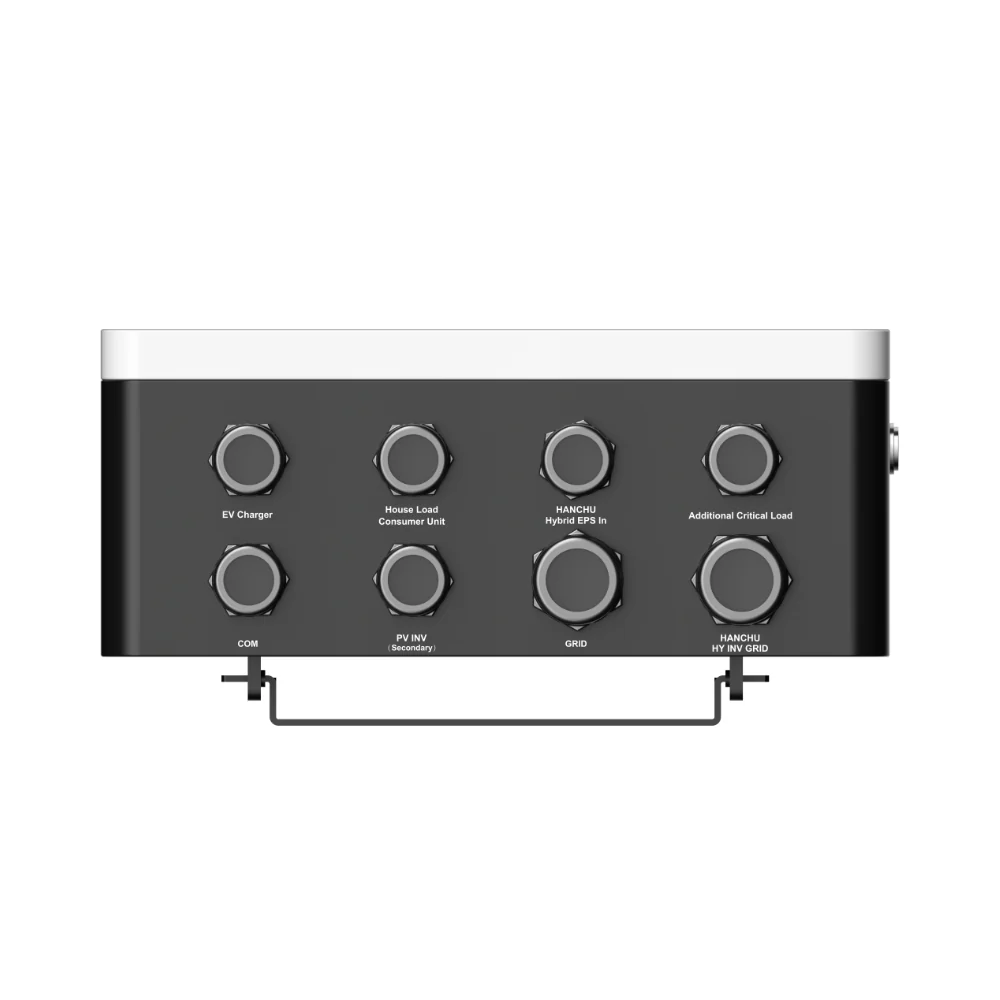

Hanchu ESS Gateway - Single Phase Gen 2 - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Manufacturer Code: HESS-Gateway-M1

Order Code: HC-SP-Gateway

Introduction

HANCHU ESS has developed a gateway for home energy storage systems that supports partial home backup and is capable of connecting EV charger. It facilitates data collection and monitoring, off-grid backup switching, and provides more centralised management of household electricity consumption.

Key Features

  • Supports PV inverters – Can be combined with a hybrid inverter to supply power to the load.
  • Reliable Energy – Switch to bypass mode in case of system abnormality to supply power from the grid to the loads.
  • Ultimate Safety – IP65 protection level and Protection Class: I
  • Easy Installation – Pre-installed meters make installation easier.
  • All RCBOs comply fully with BS7671 wiring regulations – the gold standard for electrical installations.
  • Type A RCBOs detect both AC and pulsing DC residual currents in both directions.
  • Ensures safety against short circuits, overloads and DC back-feed.

Input Data

  • Nominal AC Input Voltage Range: 220/230/240V
  • Max. AC Current (Grid): 100A
  • Max. AC Current (PV INV): 32A
  • Max. AC Current (Inverter): 32A
  • Rated AC Frequency: 50/60Hz

Output Data

  • Nominal AC Output Voltage Range: 220/230/240V
  • Max. AC Current (Load): 100A
  • Max. AC Current (Backup): 32A
  • Max. AC Current (EV Charger): 32A
  • Rated Output Frequency: 50/60Hz
  • Switching Time: House Load Consumer Unit≤300ms, Additional Critical Load≤10ms

Supported Devices

  • Inverter: Yes
  • Battery: Yes
  • EV Charger: Yes
  • Load: Yes

General Data

  • Activation Methods: Grid Startup + Inverter Startup
  • Operating Modes: On Grid + Off Grid
  • Bypass Mode: Manual
  • Protection Class: I
  • AC Surge Protection Type II: Yes
  • Ingress Protection Degree: IP65
  • Operating Temperature Range: -20~50°C
  • Relative Humidity Range: 5%~95%
  • Operating Altitude: <4000m (>2000m derating)
  • Cooling Concept: Natural convection
  • Dimensions (W x H x D): 360*450.5*169.5 mm
  • Weight: 13.9kg
  • Warranty: 2 years
