Hanchu Low Voltage Battery 9.4kWh (Heated) - Auxiliary Heat
HomeStore

Hanchu Low Voltage Battery 9.4kWh (Heated) - Auxiliary Heat

Hanchu Low Voltage Battery 9.4kWh (Heated) - Auxiliary Heat

$5,475.25
Hanchu Low Voltage Battery 9.4kWh (Heated) - Auxiliary Heat
$5,475.25

The Story

Compatible Products

Hanchu Single Phase Hybrid Inverter 3.68kW

Hanchu Single Phase Hybrid Inverter 5.0kW

Hanchu Single Phase Hybrid Inverter 6.0kW



Unparalleled Safety

Premium Blade LFP Cells

Features high-quality blade LFP cells from leading suppliers, designed with advanced safety features at the cell level to ensure maximum reliability and peace of mind.

Intelligent Pressure Balancing Valve

Specially designed valve maintains battery stability and prevents overpressure, safeguarding against potential explosions.

Aerosol Fire Suppression System

Cutting-edge technology to swiftly deploy internal protection capsule if any external fire is detected.

Flexible and Scalable

Compact and Minimalist Design

Features a sleek, lightweight design that is smaller and lighter compared to similar products, making it ideal for installation in limited spaces without specific spatial requirements.

Scalability

Supports the connection of up to 16 batteries in parallel, meeting a wide range of user requirements and allowing for simple addition of batteries anytime.

Easy and Quick Installation

Features user-friendly designs such as pre-assembled wiring harnesses and quick-connect installation, simplifying the setup process and reducing installation time.

Smart Energy Management (when linked to Hanchu Controller)

Smart Monitoring with iESS

The intelligent iESS platform continuously monitors battery performance, employing both hardware and software solutions to ensure operational safety and efficiency.

Octopus Tariff Integration

Compatible with Auto Octopus energy pricing, reducing energy costs by utilising cheaper rates.

Smart Weather Compensation

Automatically adjusts settings in response to weather conditions to maximise energy efficiency.

12 Years Warranty On All Hanchu Products.

  • Cell Type: Blade LFP
  • Nominal Energy: 9.4kWh
  • Maximum Parallel Number: 16
  • Nominal Voltage: 51.2V
  • Operating Voltage Range: 43.2-57.6V
  • Dimension (W*D*H) (mm): 430 * 150 * 800
  • Weight: 72Kg
  • Charging Temperature: From 0 to 50℃
  • Discharging Temperature: From -10 to 60℃
  • Depth of Discharge: 95% DoD
  • Nominal Charge: 100A
  • Discharge Current: 100A
  • Ingress Protection Degree: IP65
  • Auxiliary Heating: Standard
  • Cooling Type: Natural convection
  • Humidity: ≤95%
  • Communication: CAN / RS485 / WiFi / Bluetooth
  • Battery Safety: IEC 62619 / IEC 63056 / CE / RED
  • Transportation Certification: UN38.3
  • Warranty: 12 years
Hanchu Low Voltage Battery 9.4kWh (Heated) - Auxiliary Heat - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

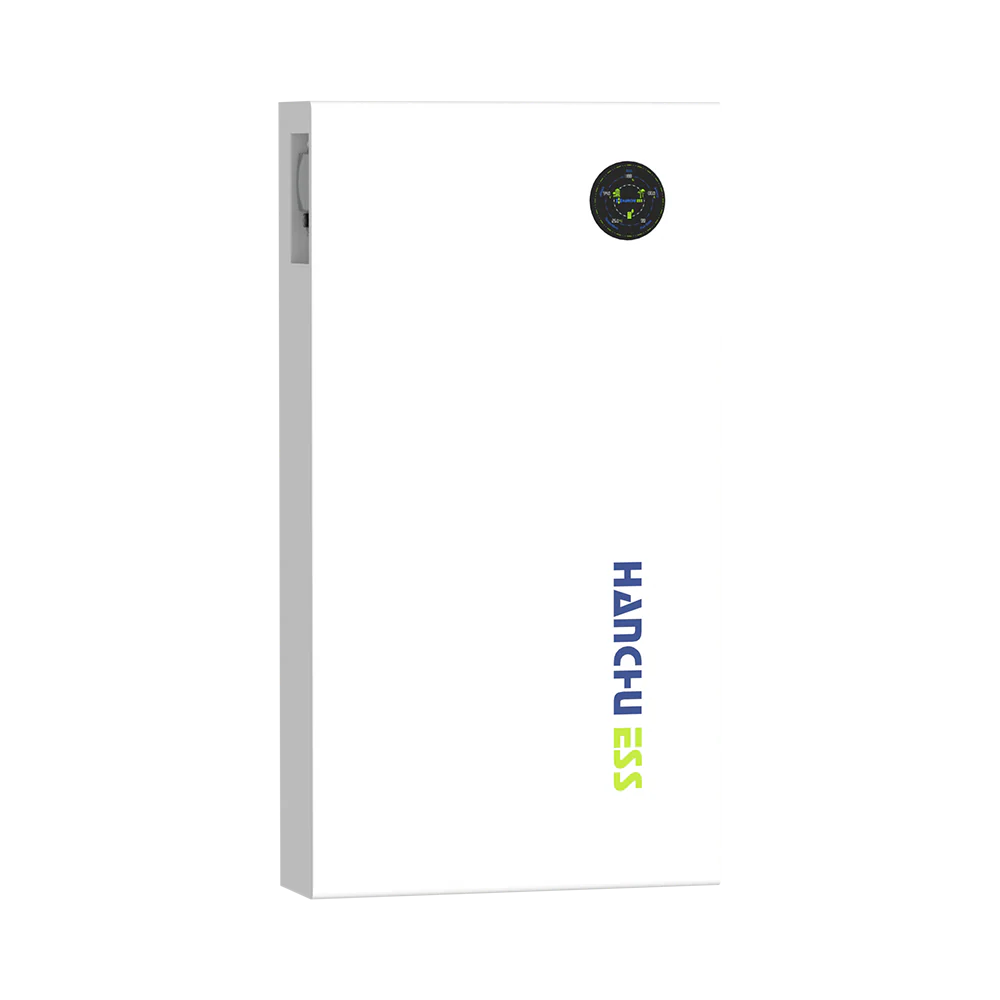

Hanchu Low Voltage Battery 9.4kWh (Heated) - Auxiliary Heat - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

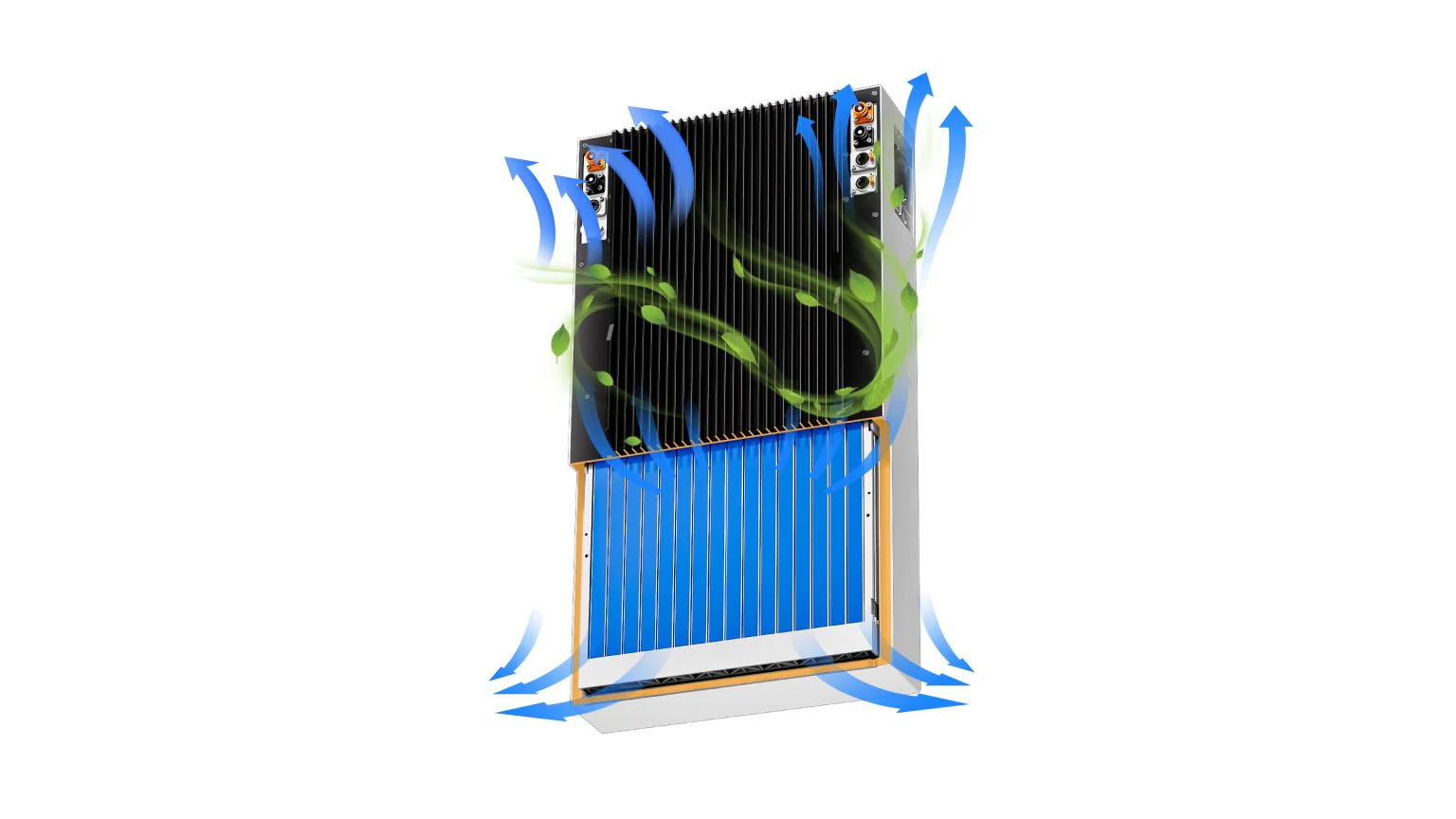

Hanchu Low Voltage Battery 9.4kWh (Heated) - Auxiliary Heat - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

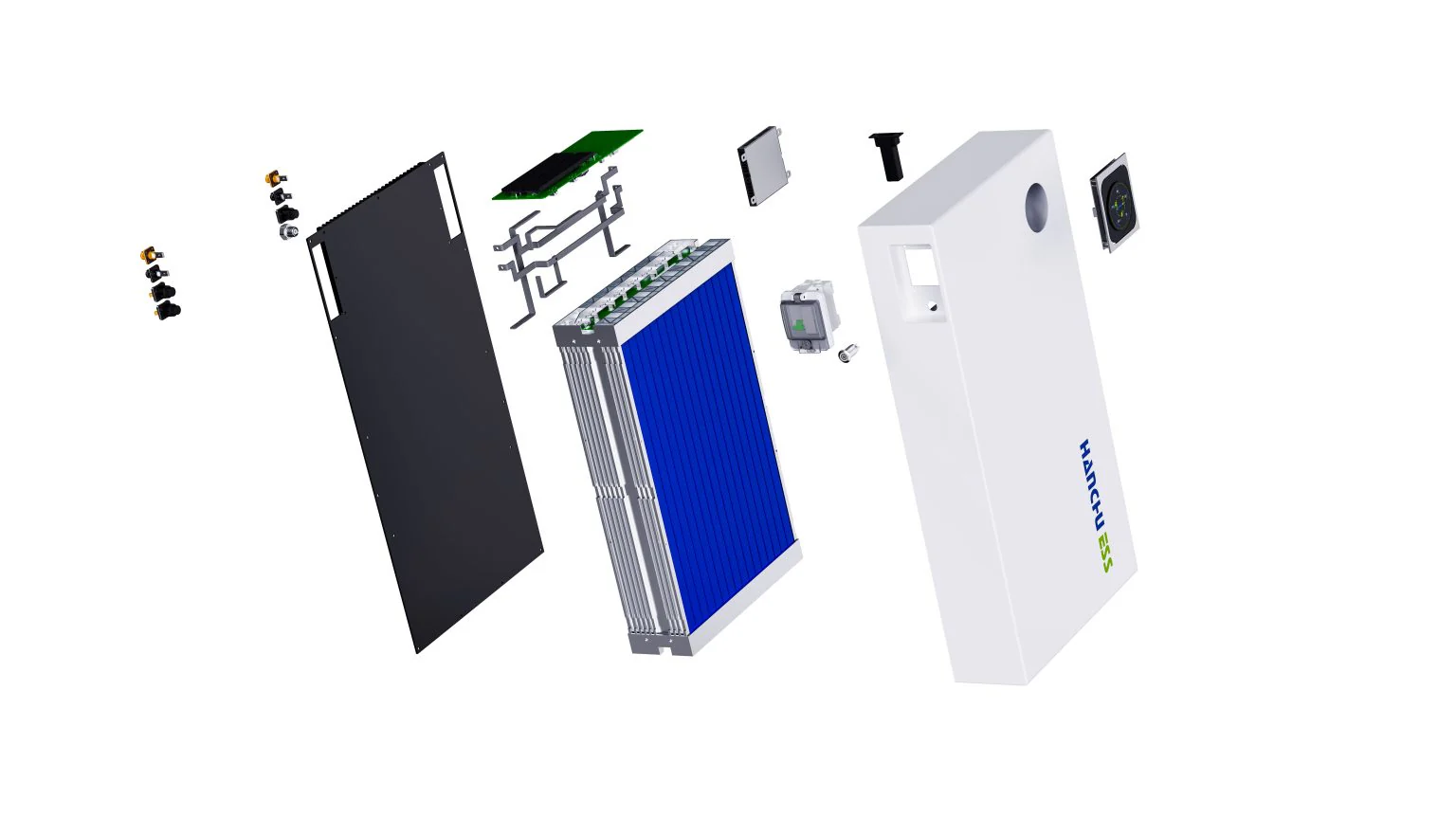

Hanchu Low Voltage Battery 9.4kWh (Heated) - Auxiliary Heat - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

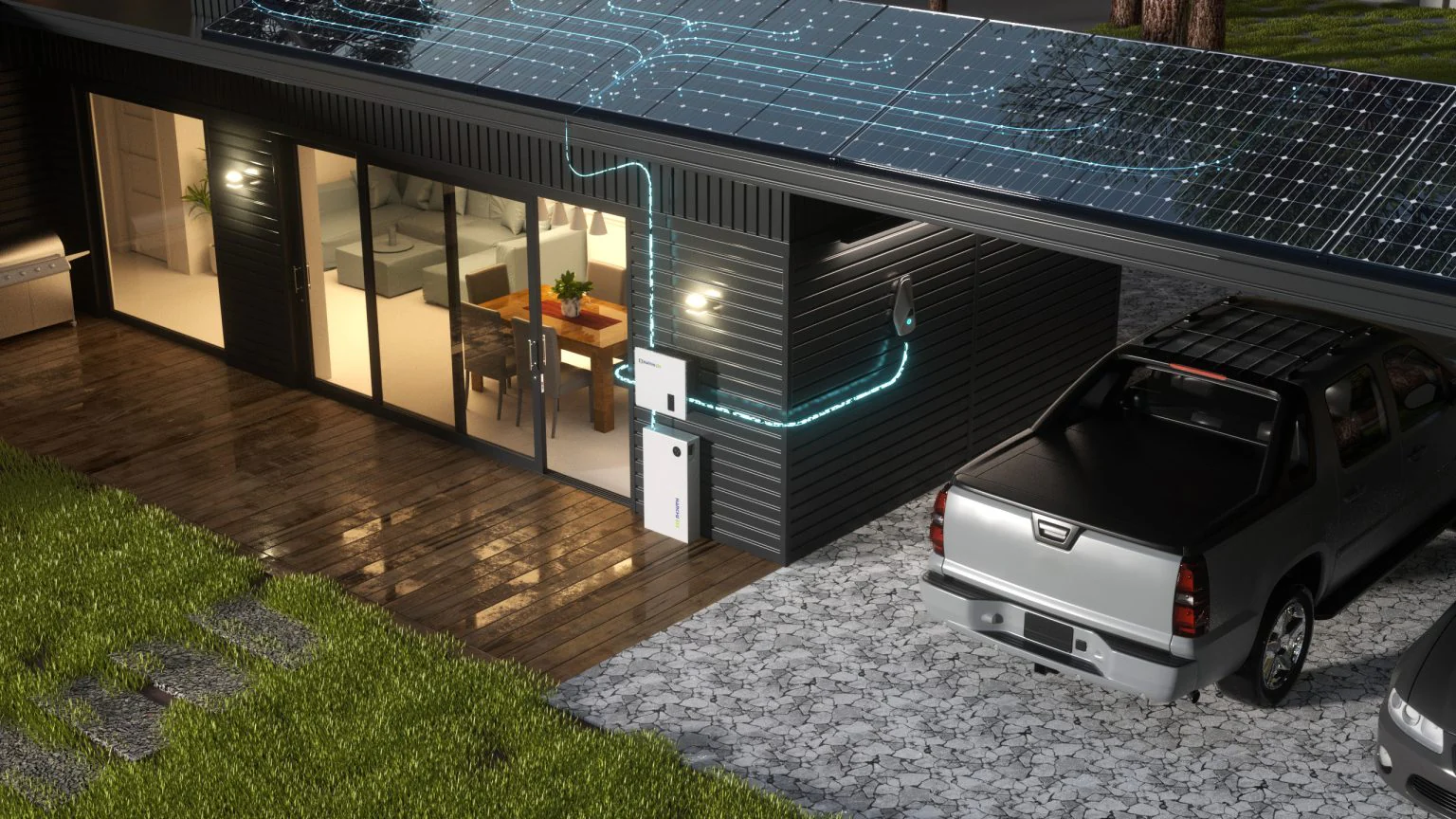

Hanchu Low Voltage Battery 9.4kWh (Heated) - Auxiliary Heat - Image 6

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Compatible Products

Hanchu Single Phase Hybrid Inverter 3.68kW

Hanchu Single Phase Hybrid Inverter 5.0kW

Hanchu Single Phase Hybrid Inverter 6.0kW



Unparalleled Safety

Premium Blade LFP Cells

Features high-quality blade LFP cells from leading suppliers, designed with advanced safety features at the cell level to ensure maximum reliability and peace of mind.

Intelligent Pressure Balancing Valve

Specially designed valve maintains battery stability and prevents overpressure, safeguarding against potential explosions.

Aerosol Fire Suppression System

Cutting-edge technology to swiftly deploy internal protection capsule if any external fire is detected.

Flexible and Scalable

Compact and Minimalist Design

Features a sleek, lightweight design that is smaller and lighter compared to similar products, making it ideal for installation in limited spaces without specific spatial requirements.

Scalability

Supports the connection of up to 16 batteries in parallel, meeting a wide range of user requirements and allowing for simple addition of batteries anytime.

Easy and Quick Installation

Features user-friendly designs such as pre-assembled wiring harnesses and quick-connect installation, simplifying the setup process and reducing installation time.

Smart Energy Management (when linked to Hanchu Controller)

Smart Monitoring with iESS

The intelligent iESS platform continuously monitors battery performance, employing both hardware and software solutions to ensure operational safety and efficiency.

Octopus Tariff Integration

Compatible with Auto Octopus energy pricing, reducing energy costs by utilising cheaper rates.

Smart Weather Compensation

Automatically adjusts settings in response to weather conditions to maximise energy efficiency.

12 Years Warranty On All Hanchu Products.

  • Cell Type: Blade LFP
  • Nominal Energy: 9.4kWh
  • Maximum Parallel Number: 16
  • Nominal Voltage: 51.2V
  • Operating Voltage Range: 43.2-57.6V
  • Dimension (W*D*H) (mm): 430 * 150 * 800
  • Weight: 72Kg
  • Charging Temperature: From 0 to 50℃
  • Discharging Temperature: From -10 to 60℃
  • Depth of Discharge: 95% DoD
  • Nominal Charge: 100A
  • Discharge Current: 100A
  • Ingress Protection Degree: IP65
  • Auxiliary Heating: Standard
  • Cooling Type: Natural convection
  • Humidity: ≤95%
  • Communication: CAN / RS485 / WiFi / Bluetooth
  • Battery Safety: IEC 62619 / IEC 63056 / CE / RED
  • Transportation Certification: UN38.3
  • Warranty: 12 years
