$41.22The Story
Temperature sensing is needed when LFP lithium batteries are charged at low temperatures. The charge current to a lithium battery has to be reduced once the battery temperature drops below 5 degrees and the charge current has to stop when the temperature drops below zero.

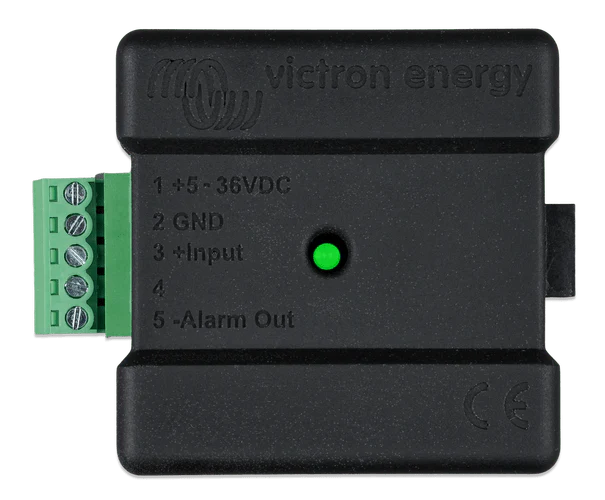

The CAN-bus Temp. Sensor takes care of this. It measures the lithium battery temperature and sends this to the Buck-Boost DC/DC converter. The Buck-Boost DC/DC converter will reduce or stop charge when the battery temperature drops too low.
In addition to this, the CAN-bus Temp. Sensor can also be connected to the temperature sensor terminal in a Multi or Quattro, so the Multi or Quattro can reduce or stop charging when the battery temperature drops too low.
| Brand |
Victron Energy |
|---|---|
| Manufacturer Part Number |
ASS000200100 |
| Supply voltage |
4.36VDC |
| Electricity consumption |
60 mA (@13.6V) |
| Alarm output (pin 5) |
350 mA Open connector (switches to GND/Earth) |
| Dimensions |
L57.6 x W40 x H15.8mm (incl. connectors) |
| Weight |
0.012Kg |
| Warranty |
5 Years |
Description
Temperature sensing is needed when LFP lithium batteries are charged at low temperatures. The charge current to a lithium battery has to be reduced once the battery temperature drops below 5 degrees and the charge current has to stop when the temperature drops below zero.
The CAN-bus Temp. Sensor takes care of this. It measures the lithium battery temperature and sends this to the Buck-Boost DC/DC converter. The Buck-Boost DC/DC converter will reduce or stop charge when the battery temperature drops too low.
In addition to this, the CAN-bus Temp. Sensor can also be connected to the temperature sensor terminal in a Multi or Quattro, so the Multi or Quattro can reduce or stop charging when the battery temperature drops too low.
| Brand |
Victron Energy |
|---|---|
| Manufacturer Part Number |
ASS000200100 |
| Supply voltage |
4.36VDC |
| Electricity consumption |
60 mA (@13.6V) |
| Alarm output (pin 5) |
350 mA Open connector (switches to GND/Earth) |
| Dimensions |
L57.6 x W40 x H15.8mm (incl. connectors) |
| Weight |
0.012Kg |
| Warranty |
5 Years |
