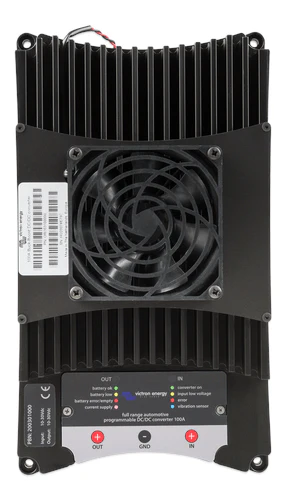

Victron Energy 100A Buck-Boost DC/DC Converter – ORI303100000

 DC-DC Converter for charging a 12V or 24V service battery in vehicles with a smart alternator (regenerative braking, Euro 5 and Euro 6 engines)

‘Engine running’ detection system

Deep discharge of the vehicle’s starting battery is avoided by a built-in ‘engine running’ detection system.

Instead of this detection system, the converter can also be activated by means of a programmable input (D+, CAN bus or (+)15 connection).

Fully programmable

The converter can be fully programmed by means of a simple and user-friendly PC application. (USB type A male to USB type B male cable needed)

One product for 12V, 24V and 12/24V systems

The converter can be programmed to charge a 12V or a 24V auxiliary battery from either a 12V or a 24V alternator and starter battery.

Charge current and input current limiter

The output current is determined by the following factors:

• The maximum charge current setting.
• The maximum input current setting.
• The maximum operating temperature limit of the converter



Brand	Victron Energy
Manufacturer Part Number	ORI303100000
Input Voltage Range	10-30V
Output Voltage Range	10-30V
Under Voltage Threshold	10V
Max. Input Voltage	30V
Max. Charge Current	12V : 100A, 24V : 50A
Dimensions	L288 x W162 x D95mm
Weight (kg)	4.1
Warranty	5 Years
