| Brand |
Victron Energy |
|---|---|
| Manufacturer Part Number |
BBA000100100 |
| Input Voltage Range |
Up to 18V per battery, 36V total |
| Midpoint deviation to start balancing |
50 mV |
| Alarm Relay |
60V / 1A normally open |
| Over Temperature Protection |
Yes |
| Protection Category |
IP22 |
| Dimensions |
H100 x W113 x D47mm |
| Weight (kg) |
0.4 |
| Warranty |
5 Years |
✨ New Arrivals Just Dropped!Explore
$45.29

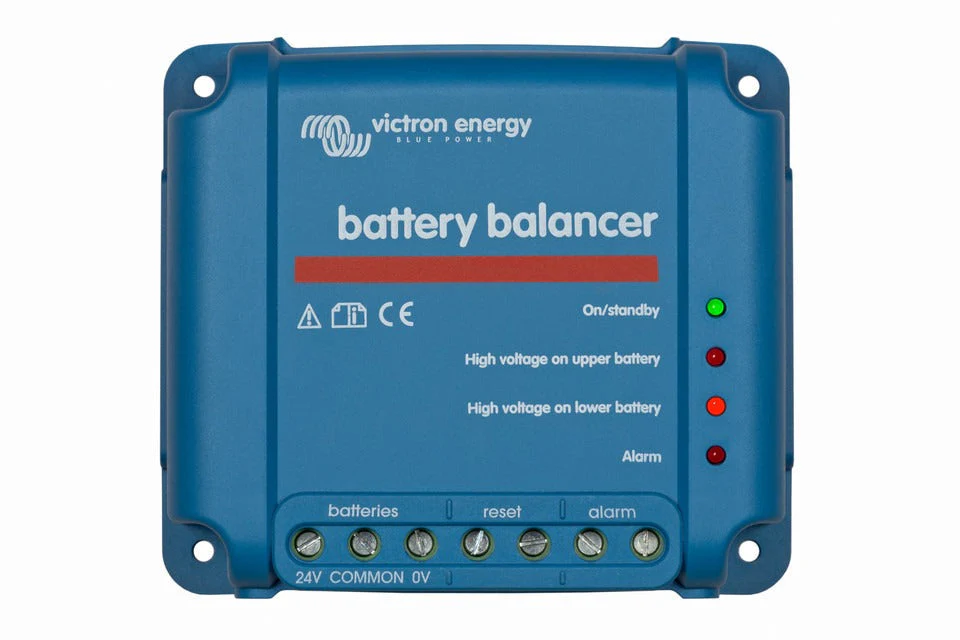

Victron Energy Battery Balancer – BBA000100100—
$45.29
The Story
Features
LED indicators
Green: on (battery voltage > 27,3V) Orange: lower battery leg active (deviation > 0,1V) Orange: upper battery leg active (deviation > 0,1V) Red: alarm (deviation > 0,2V). Remains on until the deviation has reduced to less than 0,14V, or until system voltage drops to less than 26,6V.
Alarm relay
Normally open. The alarm relay closes when the red LED switches on and opens when the red LED switches off
Alarm reset
Two terminals are available to connect a push button. Interconnecting the two terminals resets the relay. The reset condition will remain active until the alarm is over. Thereafter the relay will close again when a new alarm occurs
Even more insight and control with the midpoint monitoring function of the BMV-702 Battery Monitor
The BMV-702 measures the midpoint of a string of cells or batteries. It displays the deviation from the ideal midpoint in volts or percent. Separate deviation percentages can be set to trigger a visual/audible alarm and to close a potential free relay contact for remote alarm purposes.
Description
Features
LED indicators
Green: on (battery voltage > 27,3V) Orange: lower battery leg active (deviation > 0,1V) Orange: upper battery leg active (deviation > 0,1V) Red: alarm (deviation > 0,2V). Remains on until the deviation has reduced to less than 0,14V, or until system voltage drops to less than 26,6V.
Alarm relay
Normally open. The alarm relay closes when the red LED switches on and opens when the red LED switches off
Alarm reset
Two terminals are available to connect a push button. Interconnecting the two terminals resets the relay. The reset condition will remain active until the alarm is over. Thereafter the relay will close again when a new alarm occurs
Even more insight and control with the midpoint monitoring function of the BMV-702 Battery Monitor
The BMV-702 measures the midpoint of a string of cells or batteries. It displays the deviation from the ideal midpoint in volts or percent. Separate deviation percentages can be set to trigger a visual/audible alarm and to close a potential free relay contact for remote alarm purposes.
| Brand |
Victron Energy |
|---|---|
| Manufacturer Part Number |
BBA000100100 |
| Input Voltage Range |
Up to 18V per battery, 36V total |
| Midpoint deviation to start balancing |
50 mV |
| Alarm Relay |
60V / 1A normally open |
| Over Temperature Protection |
Yes |
| Protection Category |
IP22 |
| Dimensions |
H100 x W113 x D47mm |
| Weight (kg) |
0.4 |
| Warranty |
5 Years |
