| Brand |
Victron Energy |
|---|---|
| Manufacturer Part Number |
CYR010230412 |
| Voltage |
12/24 |
| Continuous current & Breaking capacity at 12V or 24V |
230A |
| Current Consumption When Open |
4 mA |
| Control Cable Included (Length 1 m) |
Yes |
| LED Status Indication |
Yes |
| Protection Category |
IP54 |
| Dimensions |
H65 x W100 x D50mm |
| Weight (kg) |
0.27 |
| Warranty |
5 Years |
✨ New Arrivals Just Dropped!Explore
$52.27
Original: $149.35

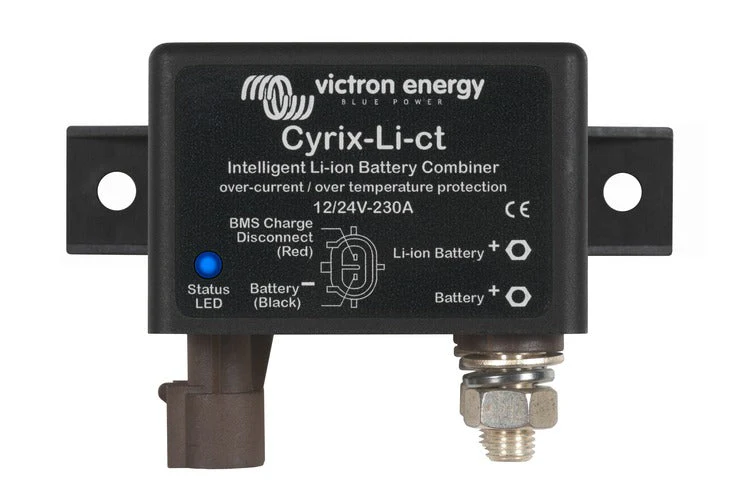

-65%Victron Energy Cyrix-Li-ct 12/24V 230A Intelligent Li-ion Battery Combiner – CYR010230412—
$149.35
$52.27The Story
The functionality of the Cyrix-Li-ct is analogous to the Cyrix-ct.
The Cyrix will disengage immediately:
- when its control output becomes free floating, signalling cell over voltage or cell over temperature, and/or
- when battery voltage drops below 13,2 V
Start assist function: a short positive pulse will close the relay during 30 seconds.
A built-in transient voltage suppressor will limit the voltage spike that may occur when the Cyrix suddenly disengages due to cell overvoltage or over temperature.
Description
The functionality of the Cyrix-Li-ct is analogous to the Cyrix-ct.
The Cyrix will disengage immediately:
- when its control output becomes free floating, signalling cell over voltage or cell over temperature, and/or
- when battery voltage drops below 13,2 V
Start assist function: a short positive pulse will close the relay during 30 seconds.
A built-in transient voltage suppressor will limit the voltage spike that may occur when the Cyrix suddenly disengages due to cell overvoltage or over temperature.
| Brand |
Victron Energy |
|---|---|
| Manufacturer Part Number |
CYR010230412 |
| Voltage |
12/24 |
| Continuous current & Breaking capacity at 12V or 24V |
230A |
| Current Consumption When Open |
4 mA |
| Control Cable Included (Length 1 m) |
Yes |
| LED Status Indication |
Yes |
| Protection Category |
IP54 |
| Dimensions |
H65 x W100 x D50mm |
| Weight (kg) |
0.27 |
| Warranty |
5 Years |
