$354.66The Story
Features
A MultiPlus-II with LCD and GX functionality
The MultiPlus-II GX integrates a MultiPlus-II inverter/charger and a GX device with a 2 x 16 character display.

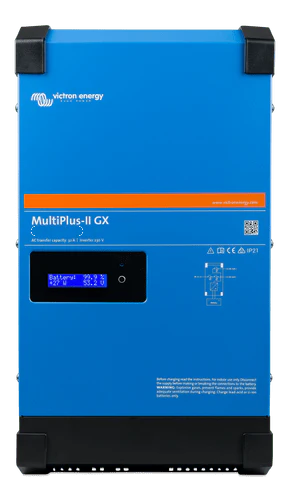

Display and Wi-Fi
The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other Wi-Fi enabled device.

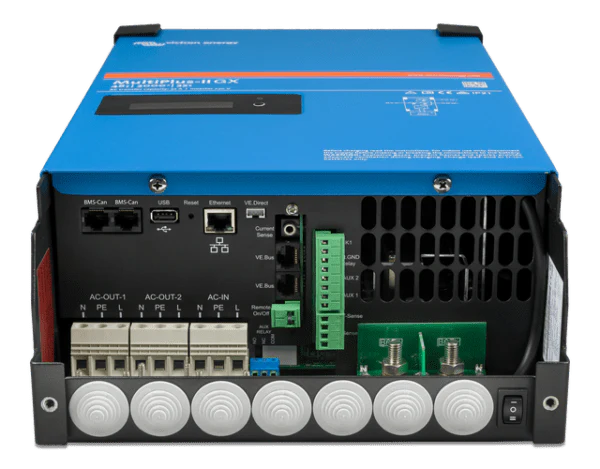

GX device
The integrated GX device includes:
- A VE.Can interface. This can be used to connect to Victron VE.Can devices (eg VE.Can MPPTs), or the port can be reconfigured via the Remote Console for use with a compatible CAN-bus Li-ion Battery.
- A USB port.
- A Ethernet port.
- A VE.Direct port.
Applications
The MultiPlus-II GX is intended for applications where additional interfacing with other products and/or remote monitoring is required, such as on-grid or off-grid energy storage systems and certain mobile applications.
Parallel and three phase operation
Only one GX unit is needed in case of Parallel and three phase operation
| Brand |
Victron Energy |
|---|---|
| Manufacturer Part Number |
PMP242306000 |
| GTIN |
8719076051695 |
| Voltage |
24V |
| Transfer Switch |
32A |
| Cont. output power at 25 °C |
3000VA |
| Cont. output power at 40 °C |
2200W |
| Peak power |
5500W |
| Efficiency |
94% |
| Zero load power |
13W |
| Maximum battery charge current |
70A |
| Battery Temperature Sensor |
Yes |
| Programmable Relay |
Yes |
| Protection Category |
IP22 |
| Battery-Connection |
M8 Bolts |
| Dimensions |
H506 x W275 x D147mm |
| Weight |
19Kg |
| Warranty |
5 Years |
| Country of Manufacture |
India |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Features
A MultiPlus-II with LCD and GX functionality
The MultiPlus-II GX integrates a MultiPlus-II inverter/charger and a GX device with a 2 x 16 character display.
Display and Wi-Fi
The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other Wi-Fi enabled device.
GX device
The integrated GX device includes:
- A VE.Can interface. This can be used to connect to Victron VE.Can devices (eg VE.Can MPPTs), or the port can be reconfigured via the Remote Console for use with a compatible CAN-bus Li-ion Battery.
- A USB port.
- A Ethernet port.
- A VE.Direct port.
Applications
The MultiPlus-II GX is intended for applications where additional interfacing with other products and/or remote monitoring is required, such as on-grid or off-grid energy storage systems and certain mobile applications.
Parallel and three phase operation
Only one GX unit is needed in case of Parallel and three phase operation
