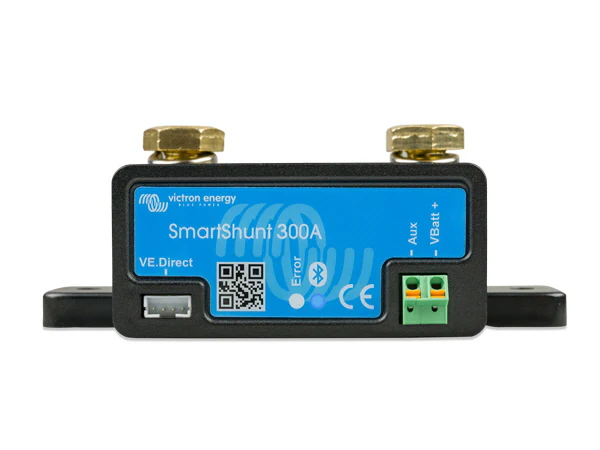

-65%Victron Energy SmartShunt 300A—
$66.82
$23.39The Story
- The SmartShunt connects via Bluetooth to the VictronConnect App.
- The VictronConnect App is used to read out all monitored battery parameters and is also used to make or change settings.
- Alternatively, the SmartShunt can connect to a GX device, like the ColorControl GX or the Cerbo GX.
- The SmartShunt has an auxiliary input that can be used to monitor the voltage of a second battery or to monitor the midpoint of a battery bank.
- The auxiliary input can also be used for battery temperature monitoring together with the optional Temperature sensor for BMV.
TECHNICAL SPECIFICATION
- SmartShunt – 300A
- Supply voltage range – 6.5 – 70 VDC
- Current draw – < 1mA
- Input voltage range, auxiliary battery – 6.5 – 70 VDC
- Battery capacity (Ah) – 1 – 9999 Ah
- Operating temperature range – -40 +50°C (-40 – 120°F)
- Measures voltage of second battery, or temperature, or midpoint – Yes
- Temperature measurement range – -20 +50°C
- VE.Direct communication port – Yes
RESOLUTION & ACCURACY
- Current – ± 0.01 A
- Voltage – ± 0.01 V
- Amp hours – ± 0.1 Ah
- State of charge (0 – 100 %) – ± 0.1 %
- Time to go – ± 1 min
- Temperature (if optional temperature sensor connected) – ± 1 °C/°F (0 – 50 °C or 30 – 120 °F)
- Accuracy of current measurement – ± 0.4 %
- Offset – Less than 20 / 40 / 80 mA
- Accuracy of voltage measurement – ± 0.3 %
INSTALLATION & DIMENSIONS
- Dimensions (h x w x d) – 300 A: 44 x 120 x 44 mm
- Shunt connection bolts – M8 (0.3937 inch)
- Protection category – IP21
- Part number – SHU050130050
| Brand |
Victron Energy |
|---|---|
| Manufacturer Part Number |
SHU050130050 |
| Supply Voltage Range |
6.5 – 70 VDC |
| Operating Temperature |
-40 +50°C (-40 – 120°F) |
| Current |
± 0.01 A |
